Replaceable cartridge to the filter "SVOD" SVOD-AS + Deferrization
ресурс: до 42 000 л
цена: 336 UAH
Replaceable cartridge to the filter "SVOD" SVOD-AS + Deferrization
Replaceable cartridge to the filter "SVOD" SVOD-AS + Deferrization

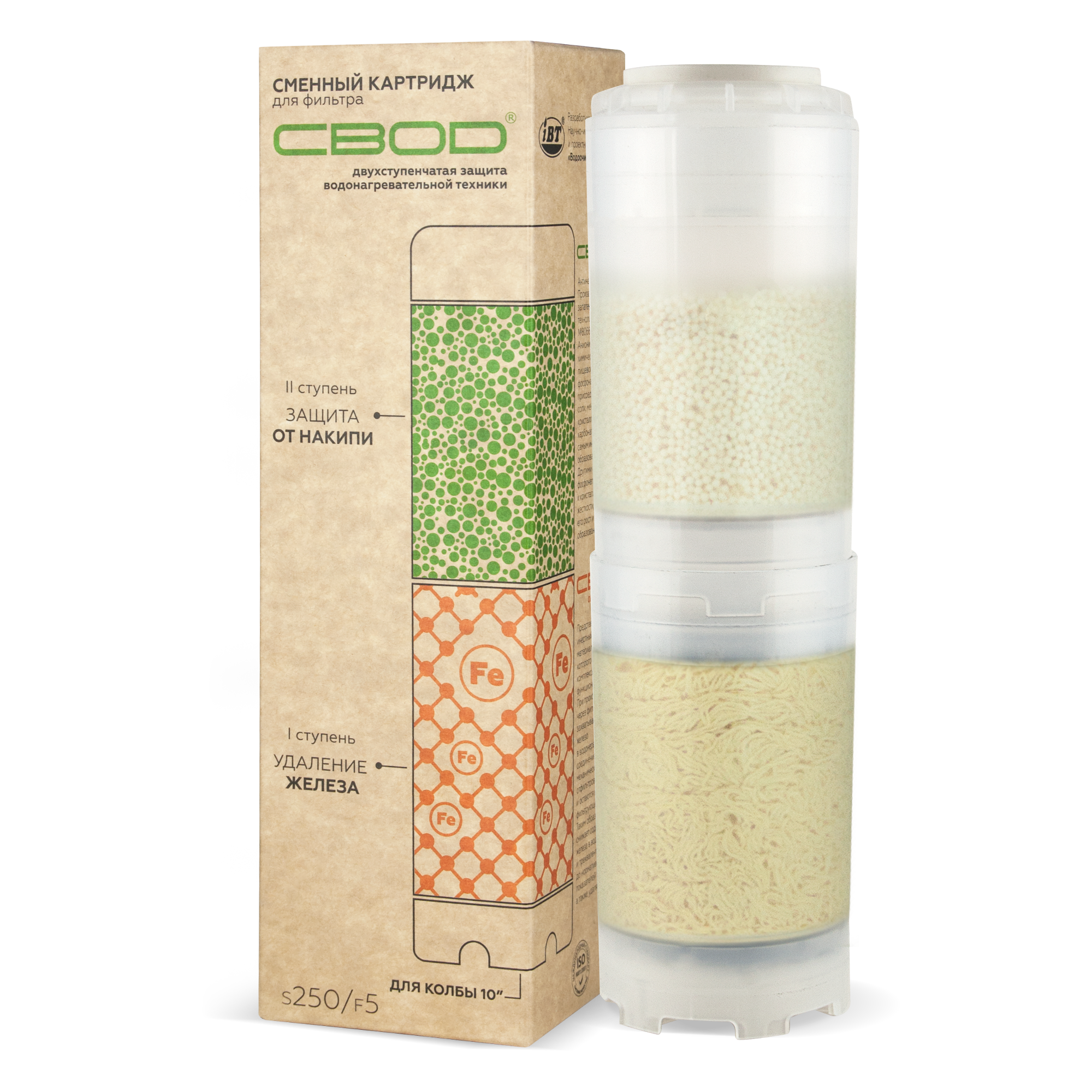

Replaceable cartridge to the filter "SVOD" SVOD-AS + Deferrization is designed to protect heat exchange surfaces from scale and corrosion (including removal of previously formed), a well as to remove iron compounds from water.
The cartridge consists of two modules, which provides two-stage protection of heating equipment:
The first stage is deferrization module:
provides reduction of the content of iron in the water. It removes from the water insoluble (ferric) iron, also transfers the soluble (ferrous) one to insoluble form and filters it. Thus, a decrease in the iron content in the water to the required indices (0.2 - 0.3 mg/l) occurs and manganese is removed.
The second stage is anti-scale module "SVOD-AS​:
provides protection of heating elements of all types from scale formation and other deposits. It destroys the previously formed scale.
As a result of applying the filter with the cartridge ST250/F5 scale is not formed, the heat exchange surface is not overgrown with rust, service life of water-heating equipment and plumbing increases, and the consumption of gas and electricity is saved.
Cartridge S250/F5 fits all standard flasks 10".
Specifications:
Filter life span: 42 000 liters

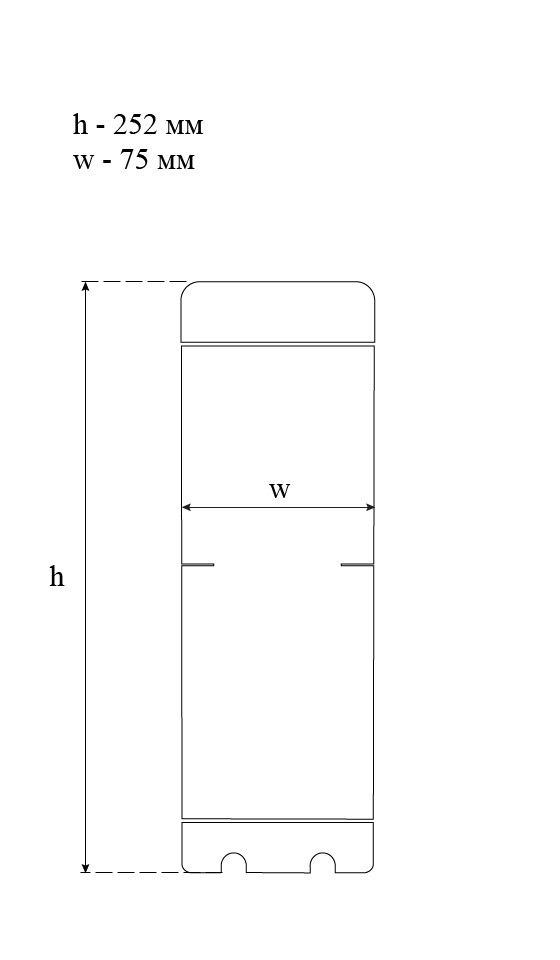

Size: 10 inches
The temperature of treated water: from 5 to 40 °C
The working temperature of the heated water: from 5 to 105 ºC
The working pressure of the filter: up to 0.6 MPa (6 kgf/cm2)
Service life (of the cartridge): 1 year
Shelf life (of the cartridge): 3 years
*Subject to suitability of water for GOST "drinking Water"

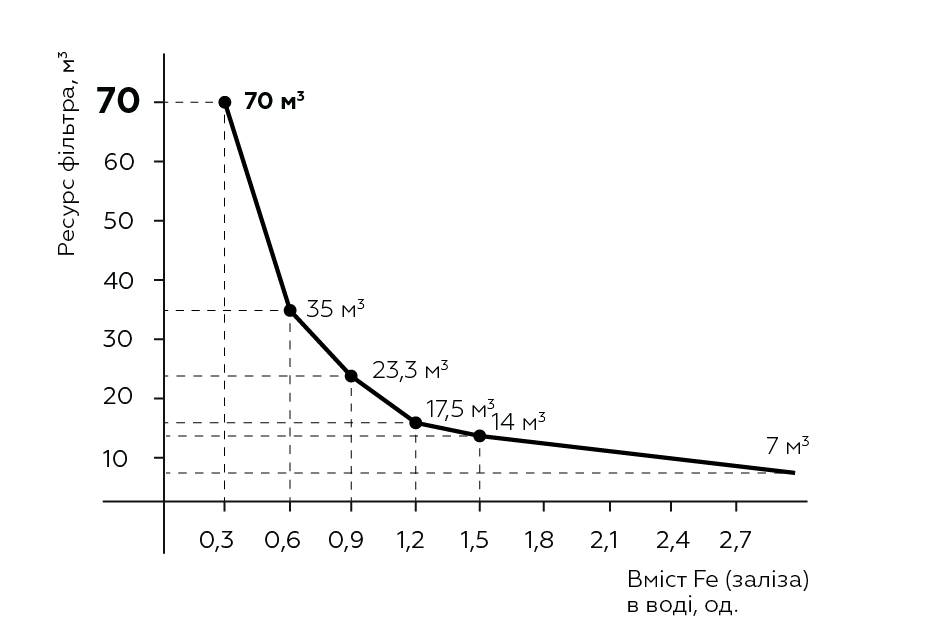

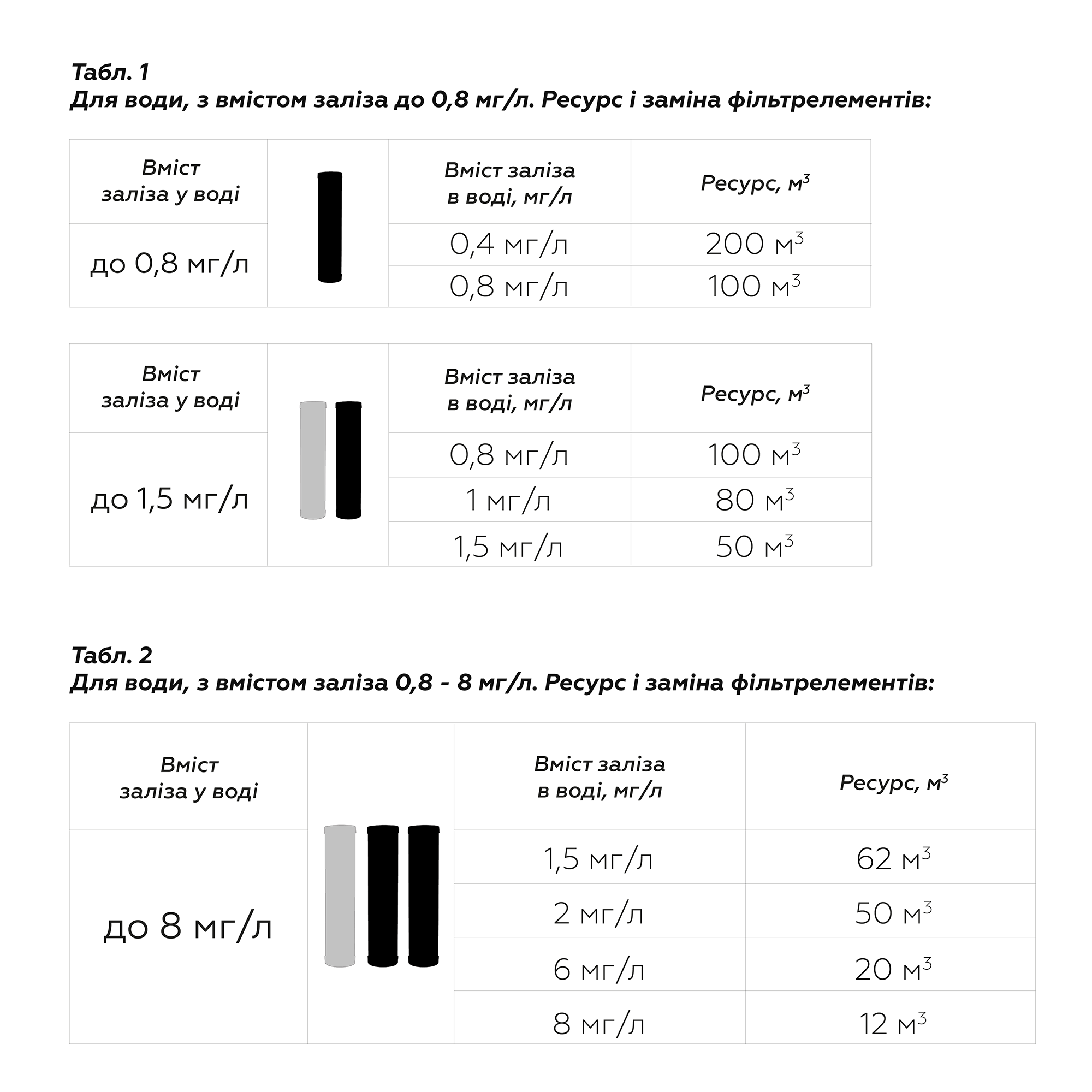

*With increased values of iron (Fe) and water hardness the life span of the product is determined by the graphs in Fig. 2 and 3.

Package contents of the product:
Cartridge SVOD S250/F5 – 1pc
Safety data sheet and operation manual
Calendar of replacement
